Material handling equipment TPE casters

Price: 1.5~4.3 USD
Payment Terms: T/T,L/C
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: E140922001
Production Capacity: 0.5 million per month
Delivery Date: 30 days after samples confi...
color: blue or customer choosing c...
wheel rim: PP
Mounting height: 155mm
Bearing: duplex ball bearing
work speed: 3km/h
Means of Transport: Ocean,Land
Packing: carton box, wooden case
Brand Name: Verro
Size: 5"(125mm) / other customize...
Tread: TPE
Offset: 40mm
forks: pressed steel
Load capacity: 160 KG

1.5" TPE wheel
2. swivel head with bolt hole fitting
3. PP+TPE material
4.wheel ball bearing
5.zinc-plated,blue-passivated steel bracket

Material handling equipment TPE casters

Material handling equipment TPE casters specs sheet:

BrandVERRO
Fitting typeBolt holt fitting
Size125*36mm
HousingBolt hole swivel head

robust tubular rivet,firmly pressed

the top&bottom disks together


double ball bearing1.double ball bearings
2.precise stainless steel balls
3.quenched ball groove discs with little gaps
dust-proof spacerprotect balls from dust and dirts
forksstrong,shapely fork shape design
Rubber wheelwheel tyreTPE wheel tyre
wheel centerPP wheel center
Sealings
PP made dust-proof sealings
Bearingball bearingflawless ball bearing with no noise and
perfect working performance
Options

Other materials wheel

can be chosen

Threaded stem/top plate fitting can be chosen

Material handling equipment TPE casters:

Material handling equipment TPE caster parameters Diagram:

Wheel DiaTread widthBolt Hole DiaOffset DistanceMounting HeightLoad capacity
80mm36mm12.8mm40mm105mm120kg
100mm36mm12.8mm40mm132mm140mm
125mm36mm12.8mm40mm155mm160KG
160mm40mm12.8mm55mm190mm200kg
200mm40mm12.8mm55mm235mm250kg

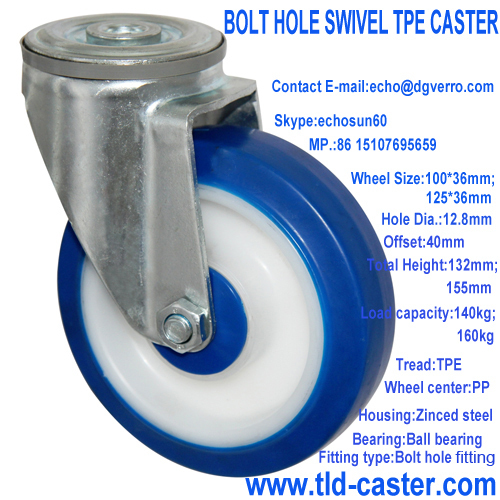

Material handling equipment TPE caster illustration show:

Product warranty:

Casters from VERRO have one year quality warranty after ex-factory date.



VERRO will be responsible for all damages and defects from raw materials and the production process.



Defected casters identified by VERRO will be changed free of charge

(cost of freight and installation are not included).VERRO is not responsible

for damage caused by improper use,overload,modification,etc.



This warranty is for product itself and does not include other commitment

which are impressed or implicated.Compensation for defected products is free

replacement of the defected products only.VERRO is not responsible for other costs

caused by accidents, or other damage.



FAQ(between buyers and us)

Q:Did you export to our country?

A:Our goods have been exported to Russia,Germany,Italy,Holland,France,

United Kingdom,Ukraine,Poland,Spain,United States,Canada,Brazil,Peru,

Turkey,India,Thailand,Malaysia,Australia,South Africa,etc.



Q:Did you have any certificate?

A:yes,our products are certified by ISO9001:2008;Germany TUV.

If you need to do other certificate,please tell us and we will consider to make it as fact.

The certificate would ask for payment.



Q:How can I trust your quality

A:The whole production is under strict quality control in accordance

with the ISO9001and every working procedure is in tightened supervision of

our QC department and one more checking before being sent to you by TUV.



High-quality caster wheel in China

Our main products include PU casters, TPR casters, PP casters, rubber casters,

elastic rubber casters, nylon casters, shopping cart casters, furniture casters,

heavy-duty casters, and so on. They have been classified into light-duty series,

 medium-duty series, heavy-duty series, top plate types, threaded stem types,

dual brake types, side brake types. They can be widely used in industry, commerce,

appliance, furniture , instruments and many other professions and fields.


Delivery:

1)Sample:7~10days after confirming details.

2)Bulk order:20~30days after approval of pre-production samples.


Payment Clause:

1)Sample:100% prepaid by T/T,Western Union,Money Gram,Cash.

Sample making charges can be fully refunded after real order placed.

2)Bulk order:30% deposit prepaid against order.Payment can be made by T/T,

Western Union,Money Gram,Cash etc.The balance should be received

after pre-shipment inspection.


Why Choose us?

--OEM and independent development experience, competitive price with high quality.

-- We have a certain production scale and experience in export business .

And our QC professionals and strict quality assurance system will help to

ensure the specific quality standards.

-- One year guarantee after products sale out.

--We always give kind and warm service to each customer,

 considering everything for our customers, to achieve customer's requirements.
